IR People Counter
HX-HE3 Web Version
By using IR blocking technology, when a human body passes by.
It will block the infrared rays from shooting back and forth.
Thus realizing the counting of people.
• Accurate Counting
• Easy Installation
• Available in DarkEnvironment
• Bi-Directional People Counting
• lR Break Beam
• Local Data Query
• Long Battery Life
• Mobile Web Page Data Query
Features
Specification
IR People Counter Related Introduction
Accurate Counting
Infrared beam counter can quickly count the number of people and auto matically identify the directionof pedestrians entering and exiting. under standard conditions, theaccuracy of a single personpassing is over 90%.
Local Data Query
Infrared beam counter it supports querying device screen data of the past 730days, 36 months, 10 years and canclear current – day and all data.
Flexible Power Supply Options
Infrared beam counter it provides a 2000mAh large-capacity battery and Type-C interface power supply to meet the needs of different scenarios.
Long Battery Life
Under standard usage conditions, it can run continuously for up to 5-8 months on a single charge,
ensuring a worry-free experience in a variety of application scenarios.
AP Configuration and Data Query
Parameter Settings
After the mobile phone isconnected to the device a pall parameter information can be directly set and viewedthrough the mobile phone web page, including business hours,equipment time, countdirection, etc. The operation issimple and smooth.

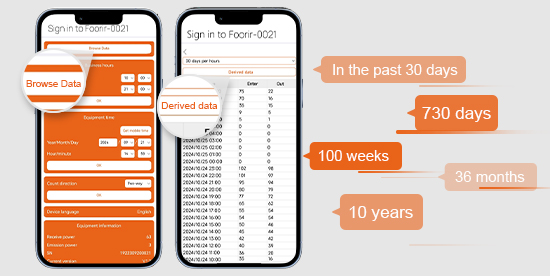

Browse Data
You can browse data on the mobile web page to query historical data for the past 30days per hour, 730 days,100weeks, 36 months, and 10years, and you can easilyexport data files to your mobile phone for easy access.
Application Scenarios
Infrared beam counters are widely used in shopping malls, retail stores, scenic spots, libraries, museums, restaurants, factories,
supermarkets, parks, office buildings, toilets and other places.
Easy Installation
No wiring required, easily paired with 3M super glue or screws for parallel alignment installation,
code pairing is successful start using immediately.
3M Adhesive
Screw Fixation
Code Pairing Successful
Related Products
HX-HE1 Standalone Version
HX-HE2 WIFI Version
HX-CCD20 3D Stereo Vision
TOF People Counter
Specification
Dimension and Weight
Length
65 mm
Breadth
50 mm
Thickness
25 mm
Weight
Gross weight: 0.37KG (including accessories)
Net weight: 0.076KG
Actual size and weight may vary depending on configuration, manufacturing process, and measurement method
Install and Visual parameter
Install
The inlet and outlet sides are fixed
Visual parameter
Visual distance (coverage) indoor 1m-20m, outdoor 1m-17m
Accuracy rate and Height
Accuracy rate
≥80% in a standard environment
Height
Suggestion 1.0m-1.4m
Power and Power supply mode
Power
0.004-0.37W
Power supply mode
3.7VLi-ion (2000mAh)
Type-c Wired power supply
Environment and Battery Life
Environment
Battery Life
Accessories list
Accessories list
Charger (x1)
Battery (x2)
Stand (x2)
3M Glue (x4)
Certificate (x1)
Instructions (x1)
Warranty Card (x1)
